Mac Allister TTB1170LWM LAWN MOWER 1800W 46CM

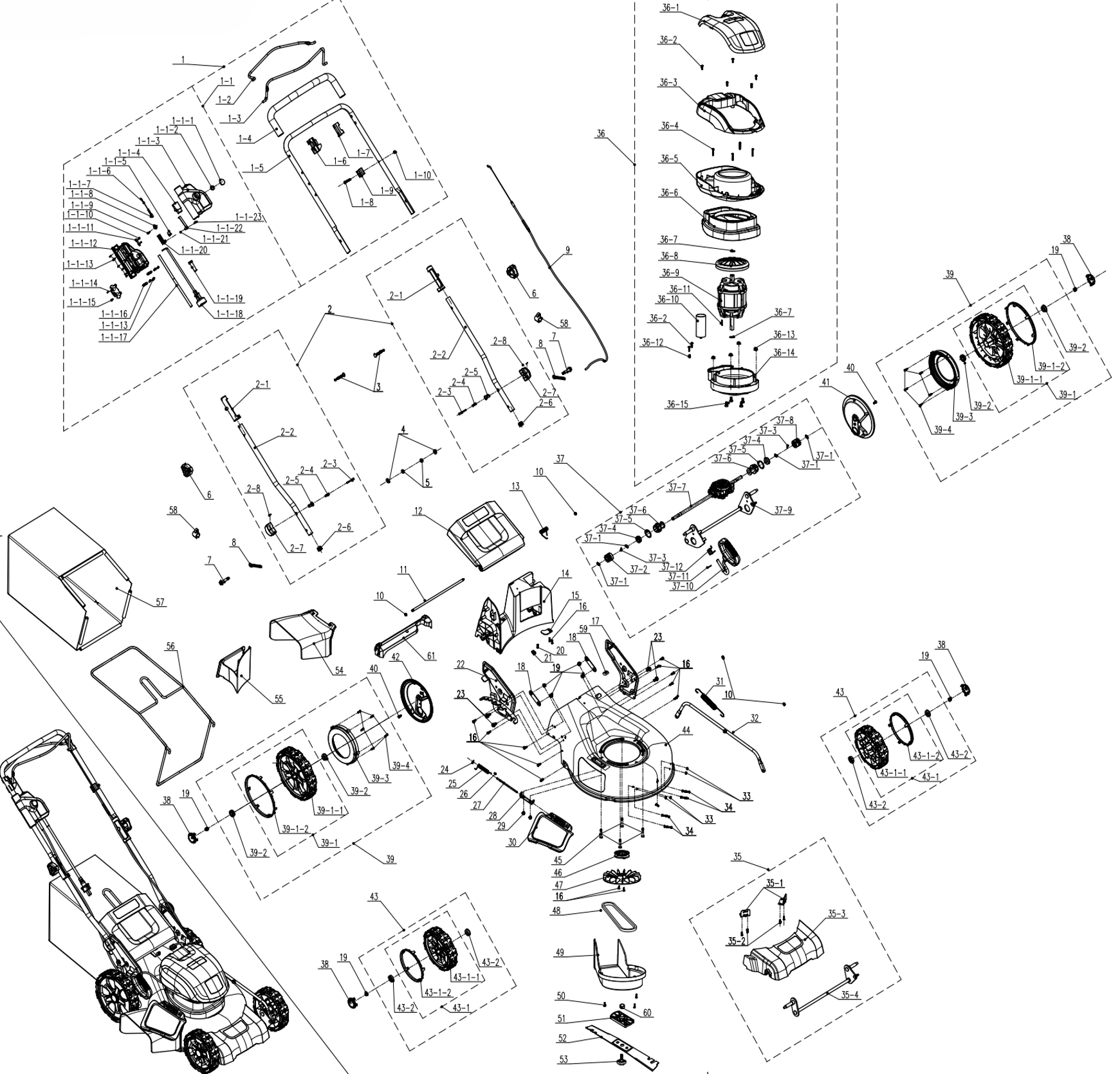

Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1 | 199004000924
SWITCH BOX ASSEMBLY + UPPER BAR (ALT GP0000007624) | Not Available | ||
| 1-1 | 199075000601
SWITCH BOX ASSEMBLY (ALT GP0000007625) | Not Available | ||
| 1-2 | 201120000133
CONTROL BAR $$$ (ALT GP0000007646) | Not Available | ||
| 1-3 | 201120000132
CONTROL BAR $$$ (ALT GP0000007647) | Not Available | ||
| 1-4 | 207450100023
HANDLEBAR GRIP SLEEVE $$$ | Not Available | ||
| 1-5 | 207300300002
UPPER HANDLEBAR $$$ | Not Available | ||
| 1-6 | 202031000640
BRACKET $$$ | Not Available | ||
| 1-7 | 202031000599
BRACKET $$$ | Not Available | ||
| 1-8 | 8SFDD06-35Q
BOLT $$$ | Not Available | ||
| 1-9 | 8141-911602-0100120
CABLE CLAMP $$$ | Not Available | ||
| 1-10 | 207321300001
NUT $$$ | Not Available | ||
| 1-1-1 | 202003002538
BUTTON $$$ (ALT GP0000007626) | Not Available | ||
| 1-1-2 | 8342-510505-0000000
BUTTON SPRING $$$ | Not Available | ||
| 1-1-3 | 8020-517802-0067110
SWITCH BOX UPPER COVER $$$ | Not Available | ||
| 1-1-4 | 8042-660102-0000010
SWITCH | Not Available | ||
| 1-1-5 | 8342-510903-0000000
SPRING | Not Available | ||
| 1-1-6 | 199081000116
CABLE ASSEMBLY | Not Available | ||
| 1-1-7 | 201041000045
TRIGGER | Not Available | ||
| 1-1-8 | 8183-510901-0000120
BUTTON BASE PLATE | Not Available | ||
| 1-1-9 | 8SJAB40-08D
SCREW - ST $$$ | Not Available | ||
| 1-1-10 | 8SNAB30-08D
SCREW - ST $$$ | Not Available | ||
| 1-1-11 | 8186-510802-0000000
PRESSURE PLATE $$$ | Not Available | ||
| 1-1-12 | 8020-517803-0067110
SWITCH BOX LOWER COVER $$$ | Not Available | ||
| 1-1-13 | 207310300002
SCREW $$$ | Not Available | ||
| 1-1-14 | 202014000183
HOOK $$$ (ALT GP0000007637) | Not Available | ||
| 1-1-15 | 8SJAB50-50Q
SCREW - ST $$$ | Not Available | ||
| 1-1-16 | 8184-516201-0001720
CABLE CLAMP $$$ | Not Available | ||
| 1-1-17 | 207040200034
CONTROL CABLE | Not Available | ||
| 1-1-18 | 207020800024
POWER CORD (TYPE G PLUG) | On Order | Contact Us | |
| 1-1-19 | 207090100002
POWER CORD STRAIN RELIEF | Not Available | ||
| 1-1-20 | 8183-510902-0201720
GUIDE PLATE | Not Available | ||
| 1-1-21 | 8NH-03D01
NUT $$$ | Not Available | ||
| 1-1-22 | 8183-510906-0000000
HOOK PLATE $$$ | Not Available | ||
| 1-1-23 | 8SJAD03-25D
SCREW $$$ | Not Available | ||
| 2 | 199004000925
LOWER HANDLEBAR SET (ALT GP0000007655) | Not Available | ||
| 2-1 | 202015000492
PIPE SLEEVE | Not Available | ||
| 2-2 | 207300500020
LOWER HANDLEBAR $$$ | Not Available | ||
| 2-3 | 207190400016
THROUGH-BOLT | Not Available | ||
| 2-4 | 207010100110
SPRING | Not Available | ||
| 2-5 | 201101000098
GROMMET | Not Available | ||
| 2-6 | 202015000343
END CAP | Not Available | ||
| 2-7 | 207259901151
LOCKING KNOB | Not Available | ||
| 2-8 | 207350300009
PIN | Not Available | ||
| 3 | 207221100016
BOLT $$$ | Not Available | ||
| 4 | 8WF-08B-1802
WASHER $$$ | Not Available | ||
| 5 | 8NH-08Q01
NUT $$$ | Not Available | ||
| 6 | 207259901147
KNOB (ALT GP0000007667) | Not Available | ||
| 7 | 207220200010
BOLT $$$ | Not Available | ||
| 8 | 201070000004
WINDING CLIP | Not Available | ||
| 9 | 199081000160
CONTROL CABLE (ALT GP0000007670) | Not Available | ||
| 10 | 8NH-06Q
NUT $$$ | Not Available | ||
| 11 | 201026000563
SHAFT | Not Available | ||
| 12 | 202030002532
REAR DISCHARGE CHUTE COVER | Not Available | ||
| 13 | 207010300095
SPRING | Not Available | ||
| 14 | 202016005977
REAR DISCHARGE CHUTE | Not Available | ||
| 15 | 201059000615
BRACKET | Not Available | ||
| 16 | 207310700040
SCREW | Not Available | ||
| 17 | 201084000061
HANDLEBAR BRACKET LH | Not Available | ||
| 18 | 201059000492
BRACKET | Not Available | ||
| 19 | 207320800007
NUT $$$ | Not Available | ||
| 20 | 207310300009
SCREW $$$ | Not Available | ||
| 21 | 8007-502501-0001720
WIRE CLIP | Not Available | ||
| 22 | 201084000062
HANDLEBAR BRACKET RH | Not Available | ||
| 23 | 8SQDD08-16B
BOLT $$$ | Not Available | ||
| 24 | 8CE-05Q
CIRCLIP $$$ | Not Available | ||
| 25 | 207010300101
SPRING | Not Available | ||
| 26 | 8025-516205-0000120
RUBBER CAP | Not Available | ||
| 27 | 201026000573
SIDE DISCHARGE COVER SHAFT | Not Available | ||
| 28 | 202031001158
BRACKET | Not Available | ||
| 29 | 8SQDD06-08B
BOLT $$$ | Not Available | ||
| 30 | 202012000656
SIDE DISCHARGE COVER | Not Available | ||
| 31 | 207010500024
SPRING | Not Available | ||
| 32 | 201053000152
HEIGHT ADJUSTMENT LINKAGE | Not Available | ||
| 33 | 207420600014
SCREW $$$ | Not Available | ||
| 34 | 8NH-05Q
NUT $$$ | Not Available | ||
| 35 | 199127000224
FRONT SECTION ASSEMBLY | Not Available | ||
| 35-1 | 201059000479
BRACKET $$$ | Not Available | ||
| 35-2 | 207310300002
SCREW $$$ | Not Available | ||
| 35-3 | 202030002251
COVER $$$ | Not Available | ||
| 35-4 | 207460100007
FRONT AXLE | Not Available | ||
| 36 | 199127000300
COMPLETE MOTOR SECTION (ALT GP0000007698) | Not Available | ||
| 36-1 | 202030002515
COVER $$$ (ALT GP0000007699) | Not Available | ||
| 36-2 | 207310300002
SCREW | Not Available | ||
| 36-3 | 202030002452
COVER $$$ | Not Available | ||
| 36-4 | 207310300022
SCREW $$$ | Not Available | ||
| 36-5 | 202030002453
COVER $$$ | Not Available | ||
| 36-6 | 202030002454
COVER BASE $$$ | Not Available | ||
| 36-7 | 8CC-17B
CIRCLIP $$$ | Not Available | ||
| 36-8 | 207109900124
MOTOR COOLING IMPELLER | Not Available | ||
| 36-9 | 101001000783
1800W MOTOR | Not Available | ||
| 36-10 | 207060100016
CAPACITOR | Not Available | ||
| 36-11 | 207210200001
WOODRUFF KEY | Not Available | ||
| 36-12 | 8184-516201-0001710
CABLE CLAMP $$$ | Not Available | ||
| 36-13 | 8NH-08Q01
NUT $$$ | Not Available | ||
| 36-14 | 202090000226
MOTOR BASE | Not Available | ||
| 36-15 | 8SQDD08-16B
BOLT $$$ | Not Available | ||
| 36-16 | 242-1009
THREADLOCK | Not Available | ||
| 37 | 199086000296
REAR AXLE ASSEMBLY (ALT GP0000007714) | Not Available | ||
| 37-1 | 8CC-12B
CIRCLIP | In Stock | 2.00 | |
| 37-2 | 201004000595
DRIVE GEAR RH | Not Available | ||
| 37-3 | 207190100031
PIN | Not Available | ||
| 37-4 | 8210-910602-0000000
BEARING | Not Available | ||
| 37-5 | 8CC-34B
CIRCLIP $$$ | Not Available | ||
| 37-6 | 202031001129
BRACKET $$$ | Not Available | ||
| 37-7 | 199134000022
TRANSAXLE | Not Available | ||
| 37-8 | 201004000504
DRIVE GEAR LH | Not Available | ||
| 37-9 | 207460100008
HEIGHT ADJUSTMENT SHAFT | Not Available | ||
| 37-10 | 199104000030
HEIGHT ADJUSTMENT HANDLE (ALT GP0000007723) | Not Available | ||
| 37-11 | 8PA20-20D
SPLIT PIN | Not Available | ||
| 37-12 | 207010300102
TORSION SPRING | Not Available | ||
| 37-13 | 241-1004
GREASE | Not Available | ||
| 38 | 202121000691
WHEEL TRIM CAP | Not Available | ||
| 39 | 199088000272
WHEEL ASSEMBLY (ALT GP0000007728) | Not Available | ||
| 39-1 | 199088000263
OUTER WHEEL COMPONENTS (ALT GP0000007729) | Not Available | ||
| 39-2 | 8210-517101-0000000
SCREW | Not Available | ||
| 39-3 | 202050000010
SCREW $$$ | Not Available | ||
| 39-4 | 207310300002
WHEEL BACKING PLATE LH | Not Available | ||
| 40 | 207421300045
WHEEL BACKING PLATE RH | Not Available | ||
| 41 | 202121000695
WHEEL ASSEMBLY | Not Available | ||
| 42 | 202121000694
CHASSIS $$$ | Not Available | ||
| 43 | 199088000273
BOLT $$$ | Not Available | ||
| 44 | 201050000210
SCREW $$$ | Not Available | ||
| 45 | 8SFDD08-35B
BACKING PLATE | Not Available | ||
| 46 | 202055000031
ACCESSORY - LAWN MOWER BLADE - 46CM | Not Available | ||
| 47 | 207109900125
BLADE LOCKING BOLT | Not Available | ||
| 48 | 8345-910702-0000020
ACCESSORY - SIDE DISCHARGE CHUTE | Not Available | ||
| 49 | 202030002492
ACCESSORY - MULCHING PLUG INSERT | Not Available | ||
| 50 | 207310300002
COLLECTOR - FRAME | Not Available | ||
| 51 | 202090000408
COLLECTOR - MAIN COMPARTMENT | Not Available | ||
| 52 | 201045000462
WIRE CLIP | Not Available | ||
| 53 | 207220100043
CABLE GLAND | Not Available | ||
| 54 | 202057000060
SHAFT SLEEVE | Not Available | ||
| 55 | 202072000031
COVER PLATE | Not Available | ||
| 56 | 201059000601
COLLECTOR - FRAME | Not Available | ||
| 57 | 299001000197
COLLECTOR - MAIN COMPARTMENT (ALT GP0000007754) | Not Available | ||
| 58 | 8007-517001-0000120
WIRE CLIP | Not Available | ||
| 59 | 8204-911810-0100120
CABLE GLAND | Not Available | ||
| 60 | 207280100099
SHAFT SLEEVE | Not Available | ||
| 61 | 202030002530
COVER PLATE | Not Available | ||
| Manufacturer Model Number | TTB1170LWM |
| EAN | |
| Brand | Mac Allister |
| Description | LAWN MOWER 1800W 46CM |
| Awaiting Information |
