| Item# | Part Details | Availability | £ | |
|---|---|---|---|---|

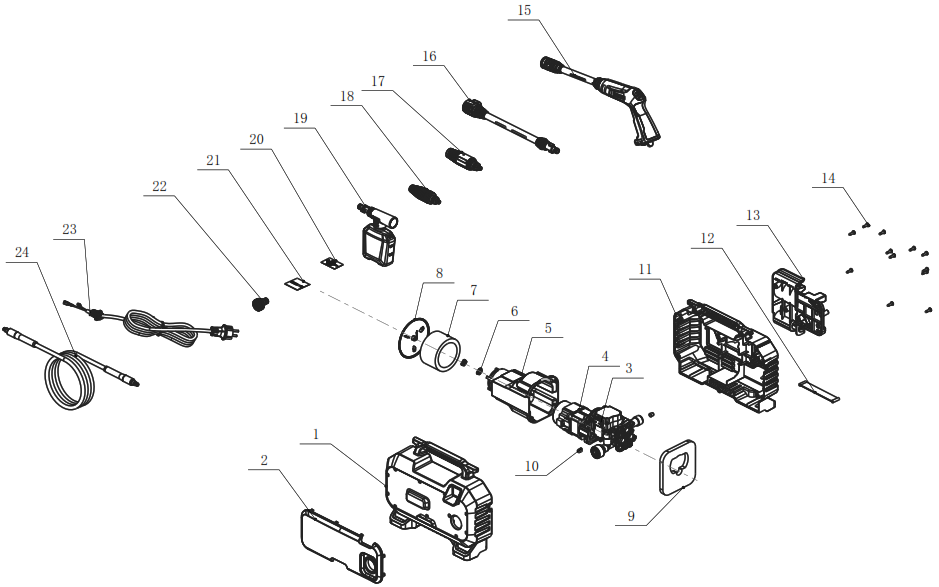

| Drawing 1 | ||||
| 1 | 120003839400
FRONT HOUSING | On Order | Contact Us | |
| 2 | 120003874500
COVER PLATE | Not Available | ||
| 3 | 110007257100
PUMP ASSEMBLY | On Order | Contact Us | |
| 4 | 110007118300
MOTOR SECTION | On Order | Contact Us | |
| 5 | 120000599600
MOTOR COVER | Not Available | ||
| 6 | 160000002200
END SEAL | Not Available | ||
| 7 | 190000396600
FILTER | Not Available | ||
| 8 | 120002511000
COVER CAP | Not Available | ||
| 9 | 190000277800
FILTER | Not Available | ||
| 10 | 120001191000
VIBRATION DAMPER | Not Available | ||
| 11 | 120003680700
REAR HOUSING | On Order | Contact Us | |
| 12 | 120002171500
CABLE TIDY | Not Available | ||
| 13 | 120003601800
ACCESSORY HOLDER | On Order | Contact Us | |
| 14 | 130000186500
SCREW ST4.8X16 | In Stock | 0.50 | |
| 15 | 190000478100
ACCESSORY - PRESSURE WASHER GUN | On Order | Contact Us | |
| 16 | 110007216900
ACCESSORY - LANCE | On Order | Contact Us | |
| 17 | 110004585300
ACCESSORY - VARIO NOZZLE | On Order | Contact Us | |
| 18 | 110004435100
ACCESSORY - ROTARY NOZZLE | On Order | Contact Us | |
| 19 | 110003932400
ACCESSORY - DETERGENT TANK | On Order | Contact Us | |
| 22 | 110004484400
ACCESSORY - WATER INLET ADAPTER | On Order | Contact Us | |
| 23 | 110007198400
POWER CABLE | On Order | Contact Us | |
| 24 | 110007217800
ACCESSORY - HIGH PRESSURE HOSE | On Order | Contact Us | |
| 25 | 110007118300
MOTOR SECTION | On Order | Contact Us | |
| 26 | 160000004200
SEAL | On Order | Contact Us | |
| 27 | 110007039900
PUMP MAIN CASING | Not Available | ||
| 28 | 130000005000
WOBBLE PLATE | Not Available | ||
| 30 | 130003267100
THRUST BEARING | Not Available | ||
| 33 | 130000006500
WASHER 6 $$$ USE GP0000005403 | Not Available | ||
| 35 | 130003047400
CHECK-VALVE PLUG KIT | Not Available | ||
| 36 | 160000040800
O-RING 9.8X1.9 | On Order | Contact Us | |
| 37 | 110000253700
WATER OUTLET CHECK-VALVE KIT | On Order | Contact Us | |
| 39 | 110007165800
VALVE ASSEMBLY | Not Available | ||
| 40 | 110007058900
PUMP HEAD ASSEMBLY | Not Available | ||
| 41 | 110007165700
VALVE BODY | Not Available | ||
| 42 | 110000244700
WATER INLET CHECK-VALVE KIT | On Order | Contact Us | |
| 43 | 160000069900
SEAL | On Order | Contact Us | |
| 44 | 160000045900
O-RING 6X2 | Not Available | ||
| 45 | 110007058800
PUMP BODY ASSEMBLY | Not Available | ||
| 46 | 120003775000
PISTON CAP KIT | Not Available | ||
| 47 | 160000178100
PISTON OIL SEAL KIT | Not Available | ||
| 48 | 160000120900
O-RING 9X2.65 | Not Available | ||
| 49 | 110006124900
TSS ACTUATOR | On Order | Contact Us | |
| 50 | 110006670300
PUMP ACTUATOR CASING | Not Available | ||
| 51 | 110007058700
QUICK-RELEASE OUTLET ADAPTER | On Order | Contact Us | |
| 52 | 110007165600
PISTON KIT | Not Available | ||
| 53 | 160000045100
O-RING - 60X2.1 | Not Available | ||
| 54 | 110006814700
MAIN CHECK-VALVE | On Order | Contact Us | |
| 55 | 130003101500
LOCKING PIN | Not Available | ||
| 56 | 120000015000
WATER INLET COUPLING | On Order | Contact Us | |
| 57 | 110007063800
TSS SWITCH + POWER SWITCH | On Order | Contact Us | |
| 58 | 160000000400
WATER INLET FILTER | On Order | Contact Us | |
| Manufacturer Model Number | TTB1280PRW |
| EAN | 5063022719423 |
| Brand | Titan |
| Description | PRESSURE WASHER - 1400W - 110 BAR |
