| Item# | Part Details | Availability | £ | |
|---|---|---|---|---|

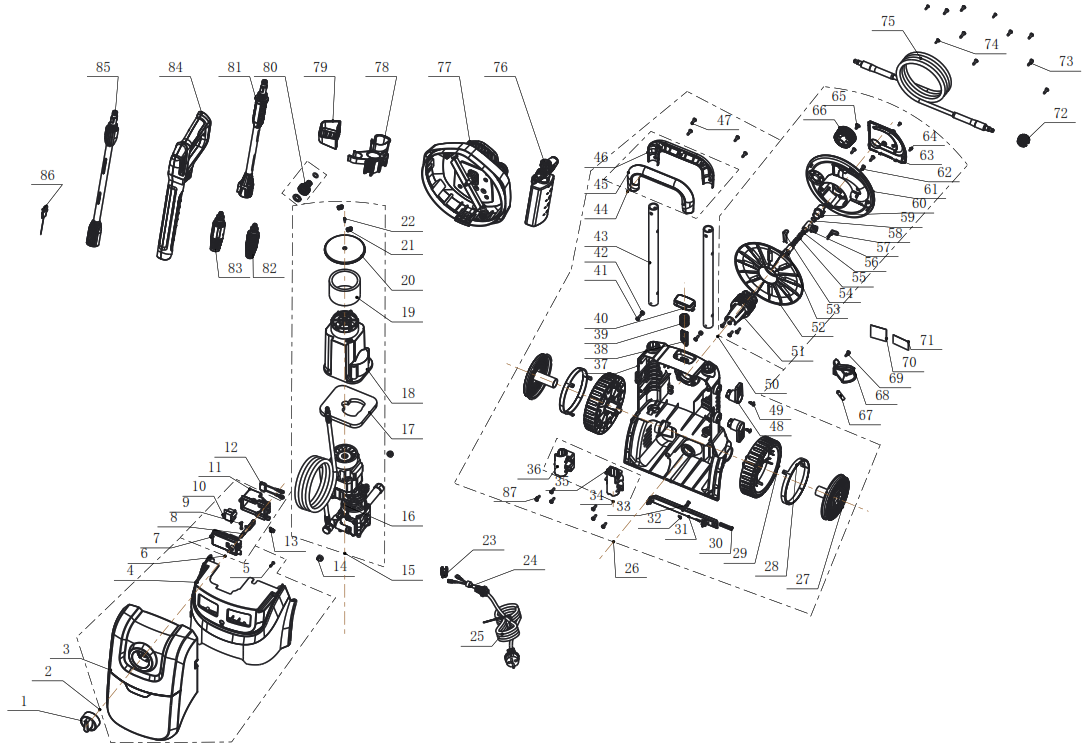

| Drawing 1 | ||||
| 1 | 120003828100
SELECTOR KNOB | Not Available | ||
| 2 | 110007138400
FRONT HOUSING ASSEMBLY | On Order | Contact Us | |
| 3 | 120003826800
FRONT HOUSING $$$ | Not Available | ||
| 4 | 120003826900
FRONT HOUSING BASE $$$ | Not Available | ||
| 6 | 110006547600
SWITCH BOX ASSEMBLY | On Order | Contact Us | |
| 10 | 150001881200
SWITCH | Not Available | ||
| 12 | 150000044300
CAPACITOR | In Stock | 2.00 | |
| 13 | 120000342600
SEAL | Not Available | ||
| 14 | 160000059300
VIBRATION DAMPER | Not Available | ||
| 15 | 110007138300
COMPLETE PUMP + HOUSING ASSEMBLY | On Order | Contact Us | |
| 16 | 110007135900
PUMP ASSEMBLY $$$ (USE GP0000008019) | Not Available | ||
| 17 | 190000277800
FILTER | Not Available | ||
| 21 | 160000002200
END SEAL | Not Available | ||
| 23 | 120001205800
CORD CLAMP | Not Available | ||
| 24 | 120000335100
POWER CORD GLAND | Not Available | ||
| 25 | 150002232700
POWER CORD (UK TYPE-G PLUG) | On Order | Contact Us | |
| 26 | 110007138800
REAR HOUSING ASSEMBLY | On Order | Contact Us | |
| 27 | 120003827700
WHEEL TRIM | Not Available | ||
| 28 | 120003826200
WHEEL TRIM RING | Not Available | ||
| 29 | 120003826600
WHEEL | Not Available | ||
| 30 | 130000084400
LOCK-SPRING | Not Available | ||
| 31 | 120003826400
LOCK LEVER | Not Available | ||
| 32 | 130003284000
E-CLIP | Not Available | ||
| 33 | 130003284100
ROLLER | Not Available | ||
| 34 | 110007122400
HANDLE BAR GUIDE (L+R) | Not Available | ||
| 35 | 120003827300
HANDLE BAR GUIDE (L) | Not Available | ||
| 36 | 120003826000
HANDLE BAR GUIDE | Not Available | ||
| 37 | 120003827900
REAR HOUSING $$$ (USE GP0000008029) | Not Available | ||
| 38 | 120003827200
CONNECTING ROD | Not Available | ||
| 39 | 130003283900
SPRING BUTTON | Not Available | ||
| 40 | 120003826500
BUTTON | Not Available | ||
| 43 | 120003828300
HANDLE BAR UPRIGHT | Not Available | ||
| 44 | 110007122200
HANDLE ASSEMBLY | Not Available | ||
| 45 | 120003827400
HANDLE (FRONT) $$$ USE GP0000008047 | Not Available | ||
| 46 | 120003827000
HANDLE (REAR) $$$ USE GP0000008047 | Not Available | ||
| 47 | 130000186500
SCREW ST4.8X16 | In Stock | 0.50 | |
| 48 | 120003827500
HOOK | Not Available | ||
| 50 | 110007138600
HOSE REEL ASSEMBLY | On Order | Contact Us | |
| 51 | 120002373900
HUB | Not Available | ||
| 52 | 120002540500
REEL END (REAR) | Not Available | ||
| 53 | 130003200400
SPIGOT | Not Available | ||
| 54 | 130003073900
U-PIN | Not Available | ||
| 55 | 160000039800
O-RING (8X1.8) | Not Available | ||
| 56 | 160000009200
U-PIN | Not Available | ||
| 57 | 130003086600
PIPE ADAPTER | Not Available | ||
| 58 | 130000073700
U-PIN | Not Available | ||
| 59 | 160000064000
SEAL | Not Available | ||
| 60 | 120003153500
REEL END ADAPTER | Not Available | ||
| 61 | 120003828500
REEL END (FRONT) | Not Available | ||
| 62 | 130000186500
SCREW ST4.8X16 | In Stock | 0.50 | |
| 63 | 120003828400
REEL END COVER | Not Available | ||
| 66 | 120003153400
REEL KNOB | Not Available | ||
| 67 | 120003826700
PIN | Not Available | ||
| 68 | 120003828200
GUIDE | Not Available | ||
| 69 | 130000186500
SCREW ST4.8X16 | In Stock | 0.50 | |
| 75 | 190000472100
ACCESSORY - HIGH PRESSURE HOSE | On Order | Contact Us | |
| 76 | 110007138700
ACCESSORY - DETERGENT TANK | On Order | Contact Us | |
| 77 | 110007058600
ACCESSORY - PATIO CLEANER ATTACHMENT | On Order | Contact Us | |
| 78 | 120003827600
ACCESSORY CARRIER | On Order | Contact Us | |
| 79 | 1200000886
ACCESSORY CARRIER BASE | On Order | Contact Us | |
| 80 | 1100002670
ACCESSORY - WATER INLET ADAPTER | On Order | Contact Us | |
| 81 | 110005074300
ACCESSORY - LANCE | On Order | Contact Us | |
| 82 | 110003157400
ACCESSORY - ROTARY NOZZLE | On Order | Contact Us | |
| 83 | 110007135400
ACCESSORY - VARIO NOZZLE | On Order | Contact Us | |
| 84 | 110006054800
ACCESSORY - PRESSURE WASHER GUN | On Order | Contact Us | |
| 85 | 110005353200
ACCESSORY - LANCE EXTENSION | On Order | Contact Us | |
| 86 | 120001239500
ACCESSORY - CLEANING NEEDLE | Not Available | ||
| 87 | 130000186500
SCREW ST4.8X16 | In Stock | 0.50 | |

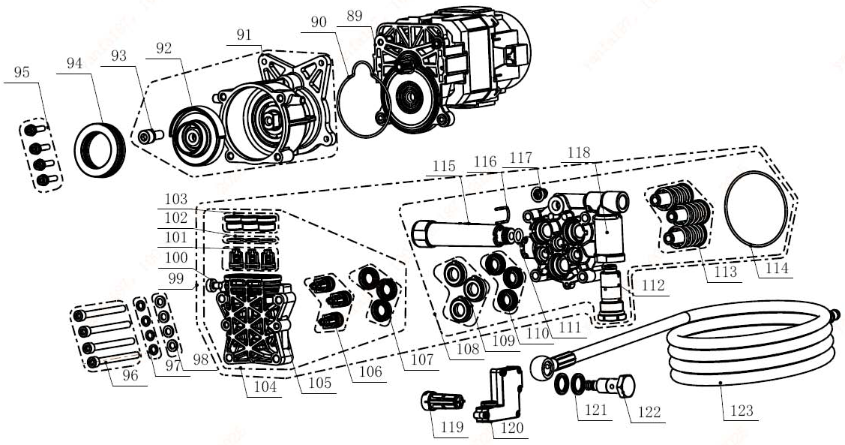

| Drawing 2 | ||||
| 89 | 110003898600
MOTOR | On Order | Contact Us | |
| 90 | 160000004200
SEAL | On Order | Contact Us | |
| 91 | 110006600200
PUMP MAIN CASING | Not Available | ||
| 92 | 130000040500
WOBBLE PLATE | Not Available | ||
| 94 | 130003278400
THRUST BEARING | Not Available | ||
| 95 | 130003066500
BOLT KIT | Not Available | ||
| 99 | 110007135800
PUMP HEAD ASSEMBLY | On Order | Contact Us | |
| 101 | 110000264700
WATER OUTLET CHECK-VALVE KIT | Not Available | ||
| 102 | 160000031400
O-RING 12.5X1.8 | Not Available | ||
| 103 | 130003086300
CHECK-VALVE PLUG KIT | Not Available | ||
| 104 | 110004632000
VALVE ASSEMBLY | Not Available | ||
| 105 | 110000138900
VALVE BODY | Not Available | ||
| 106 | 110000068900
WATER INLET CHECK-VALVE KIT | Not Available | ||
| 107 | 120001244500
INLET CHECK-VALVE KIT | Not Available | ||
| 108 | 110007135700
PUMP BODY ASSEMBLY | Not Available | ||
| 109 | 120000014500
PISTON CAP KIT | Not Available | ||
| 110 | 160000175100
PISTON OIL SEAL KIT | Not Available | ||
| 111 | 160000043400
O-RING 10X2.5 | On Order | Contact Us | |
| 112 | 110005720100
TSS ACTUATOR | On Order | Contact Us | |
| 113 | 110005808300
PISTON KIT | Not Available | ||
| 114 | 160000038600
O-RING 70X2 | Not Available | ||
| 115 | 120003136600
WATER INLET COUPLING | On Order | Contact Us | |
| 116 | 130000063700
LOCKING PIN | Not Available | ||
| 117 | 110006683700
MAIN CHECK-VALVE | Not Available | ||
| 118 | 110006670500
PUMP ACTUATOR CASING | Not Available | ||
| 119 | 160000000400
WATER INLET FILTER | On Order | Contact Us | |
| 120 | 110007145000
TSS SWITCH | On Order | Contact Us | |
| 121 | 160000178200
COMPRESSION SEAL | On Order | Contact Us | |
| 122 | 130003266500
WATER OUTLET NUT | On Order | Contact Us | |
| 123 | 190000466900
INTERNAL HIGH-PRESSURE HOSE | On Order | Contact Us | |
| Manufacturer Model Number | TTB1288PRW |
| EAN | 5063022719591 |
| Brand | Titan |
| Description | PRESSURE WASHER - 2200W - 155 BAR |
