Titan TTB844PMP WATER PUMP - 750W - SUBMERSIBLE - CLEAN/DIRTY WATER

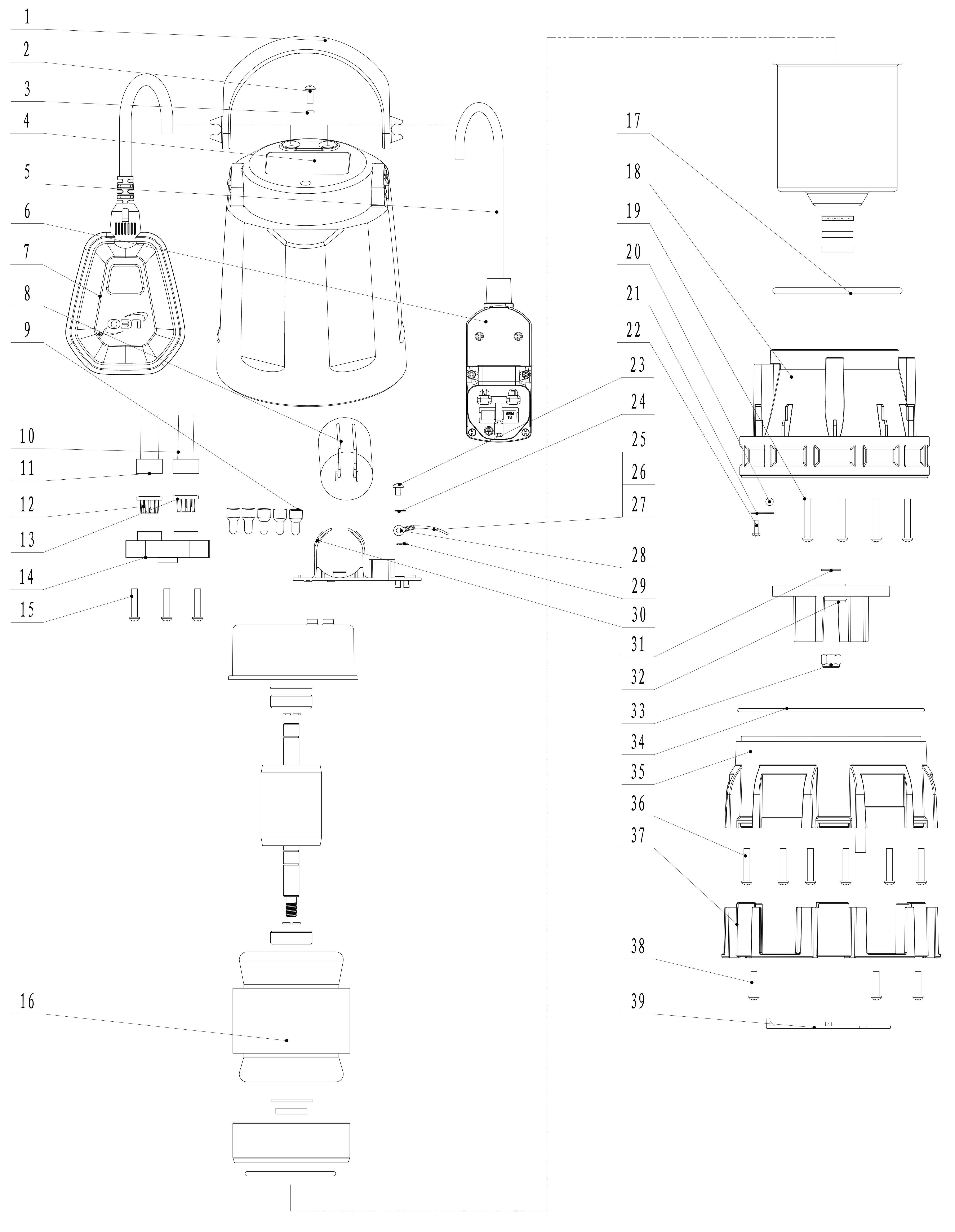

Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1 | 40052670
HANDLE | On Order | Contact Us | |
| 2 | 10033172
SCREW | Not Available | ||
| 3 | 10000501
O-RING | Not Available | ||
| 4 | 40052680
MAIN HOUSING | On Order | Contact Us | |
| 5 | 10037137
POWER CORD (3x0.75mm_10.4m) | Not Available | ||
| 6 | 10022209
PROTECTOR | Not Available | ||
| 7 | 40052569
FLOAT SWITCH | On Order | Contact Us | |
| 8 | 10022794
CAPACITOR | Not Available | ||
| 9 | 10017517
WIRE TERMINAL | Not Available | ||
| 10 | 10028344
CABLE JACKET | Not Available | ||
| 11 | 10024541
CABLE JACKET | Not Available | ||
| 12 | 40023262
CABLE CLAMP | Not Available | ||
| 13 | 40033437
CABLE CLAMP | Not Available | ||
| 14 | 40013291
CABLE PLATE | Not Available | ||
| 15 | 10001550
SCREW | Not Available | ||
| 16 | 40050955
PUMP | Not Available | ||
| 17 | 10033148
O-RING | Not Available | ||
| 18 | 40052682
BRACKET | Not Available | ||
| 19 | 10024560
SCREW | Not Available | ||
| 20 | 10001235
BALL | Not Available | ||
| 21 | 10001069
CLAMP PLATE | Not Available | ||
| 22 | 10010268
SCREW $$$ | Not Available | ||
| 23 | 10001501
SCREW $$$ | Not Available | ||
| 24 | 10001212
SPRING WASHER | Not Available | ||
| 29 | 10001583
WASHER | Not Available | ||
| 30 | 40047568
INSULATION | Not Available | ||
| 31 | 10034335
WASHER | Not Available | ||
| 32 | 40050201
IMPELLER | Not Available | ||
| 33 | 10007210
NUT | Not Available | ||
| 34 | 10021515
O-RING | Not Available | ||
| 35 | 40050965
PUMP BODY | Not Available | ||
| 36 | 10011139
SCREW | Not Available | ||
| 37 | 40045847
PUMP BASE | Not Available | ||
| 38 | 10021358
SCREW $$$ | Not Available | ||
| 39 | 40048143
BASE PLATE | Not Available | ||
| Manufacturer Model Number | TTB844PMP |
| EAN | 5059340250052 |
| Brand | Titan |
| Description | WATER PUMP - 750W - SUBMERSIBLE - CLEAN/DIRTY WATER |
