| Item# | Part Details | Availability | £ | |
|---|---|---|---|---|

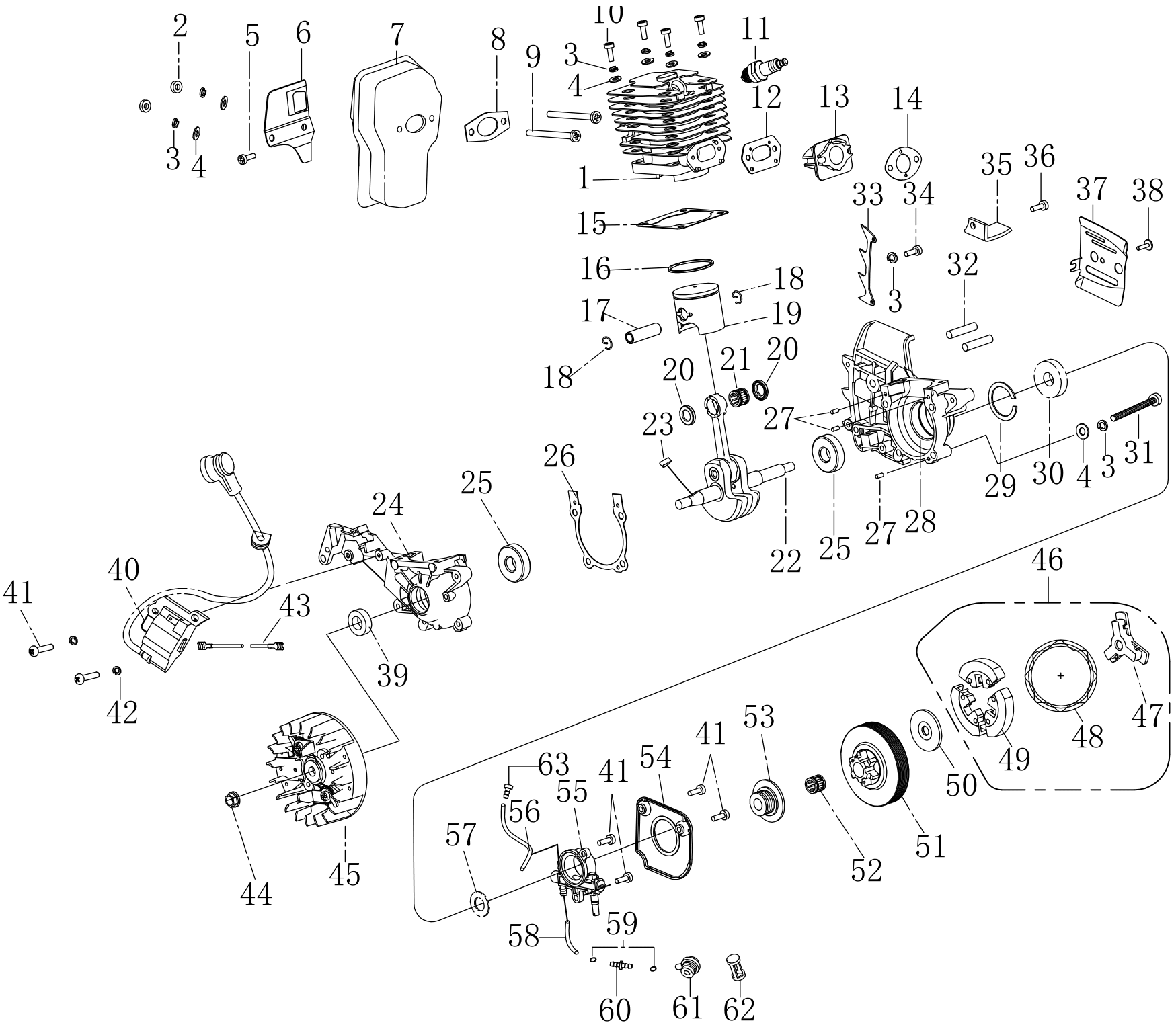

| Drawing 1 | ||||
| 1 | 20070001
CYLINDER BODY | Low Stock | 34.18 | |
| 2 | 20061357
NUT M5 | Not Available | ||
| 3 | 01.04.0091
WASHER - M5 - LOCKING | Not Available | ||
| 4 | 20054561
WASHER | Not Available | ||
| 5 | 20060972
SCREW M5X14 | Not Available | ||
| 6 | 20056611
SILENCER BODY | Not Available | ||
| 8 | 20050659
SILENCER SEALING GASKET | Not Available | ||
| 9 | 20056586
MUFFLER CONNECTING SCREW | Not Available | ||
| 10 | 20054552
SCREW - M5X20 | Not Available | ||
| 11 | 20079314
SPARK PLUG - CHAMPION RCJ7Y | Not Available | ||
| 12 | 20050663
INTAKE MANIFOLD GASKET | Not Available | ||
| 13 | 20056585
INTAKE MANIFOLD | Not Available | ||
| 14 | 20050665
CARBURETTOR GASKET | In Stock | 3.99 | |
| 15 | 20050657
CYLINDER SEALING GASKET | In Stock | 5.25 | |
| 16 | 20053137
PISTON RING | In Stock | 5.69 | |
| 17 | 20053104
PISTON PIN | Low Stock | 5.42 | |
| 18 | 20053105
GUDGEON PIN RETAINING CLIP | Low Stock | 1.99 | |
| 19 | 20053138
PISTON | Low Stock | 11.48 | |
| 20 | 20056604
NEEDLE BEARING RING | Low Stock | 5.25 | |
| 21 | 20056608
NEEDLE BEARING 10X14X11 | Low Stock | 6.58 | |
| 22 | 20056605
CRANK SHAFT COMPONENTS | Low Stock | 24.83 | |
| 23 | A45.0101.0036
WOODRUFF KEY | Not Available | ||
| 24 | 20053085
LEFT CRANK CASE | Not Available | ||
| 25 | 20061605
BEARING 6201 | Not Available | ||
| 26 | 20050669
CRANK CASE GASKET | Not Available | ||
| 27 | 01.05.0161
PIN - 3X9MM | Not Available | ||
| 28 | 20053094
RIGHT CRANK CASE | Not Available | ||
| 29 | 20061518
SHIELD RING 32 | Not Available | ||
| 30 | 20056597
OIL SEAL 12X32X5.5 | In Stock | 5.91 | |
| 31 | 20061084
SCREW M5X30 | Not Available | ||
| 32 | 20054554
STUD - M8 | Not Available | ||
| 33 | 20081924
GRIP BAR | Not Available | ||
| 34 | 20054549
SCREW M5X12 | Not Available | ||
| 35 | 20055118
CHAIN CATCHER | Not Available | ||
| 36 | 20056589
CHAIN CATCHER SCREW | Not Available | ||
| 37 | 20055115
DAMPER | Not Available | ||
| 38 | 01.01.3061
SCREW - M4X10 $$$ | Not Available | ||
| 39 | 20056600
OIL SEAL | In Stock | 3.99 | |
| 40 | 20050728
IGNITION COIL | Low Stock | 24.70 | |
| 41 | 20061071
SCREW - M4X14 $$$ | Not Available | ||
| 42 | 20054563
WASHER | Not Available | ||
| 44 | 20054557
NUT - M8 | Not Available | ||
| 45 | 20050726
FLYWHEEL ASSEMBLY | In Stock | 20.82 | |
| 46 | 20056591
CLUTCH ASSEMBLY | Low Stock | 4.80 | |
| 47 | 20056592
RETAINTER | Low Stock | 7.47 | |
| 48 | 20055128
CLUTCH EXTENSION SPRING | Not Available | ||
| 49 | 20056593
SHOE BLOCK | Low Stock | 7.47 | |
| 50 | 20055114
CLUTCH ADJUSTING WASHER | Low Stock | 5.51 | |
| 51 | 20056583
CLUTCH SHELL | Not Available | ||
| 52 | 20056594
NEEDLE BEARING 10X13X13 | Low Stock | 7.43 | |
| 53 | 20056587
WORM | Low Stock | 5.69 | |
| 54 | 20056555
COVER PLATE | Low Stock | 5.33 | |
| 55 | 20056842
OIL PUMP | Not Available | ||
| 56 | 20056830
OIL OUTGOING TUBE 3X6.5X75 | Not Available | ||
| 57 | 20056588
WORM WASHER 10X18X1 | Low Stock | 5.02 | |
| 58 | 20056834
OIL INGOING TUBE 3.5X6.5X68 | Low Stock | 5.47 | |
| 59 | 20054663
FUEL TANK ASSEMBLY - PIPE CLIP | Not Available | ||
| 60 | A38.0314.0005
FUEL TUBE CONNECTION | Low Stock | 5.35 | |
| 61 | 20056838
NOZZLE | Low Stock | 5.02 | |
| 62 | 20056841
OIL FILTER SCREEN | Low Stock | 5.33 | |
| 63 | 20056833
OIL SPRAY NOZZLE | Low Stock | 6.14 | |

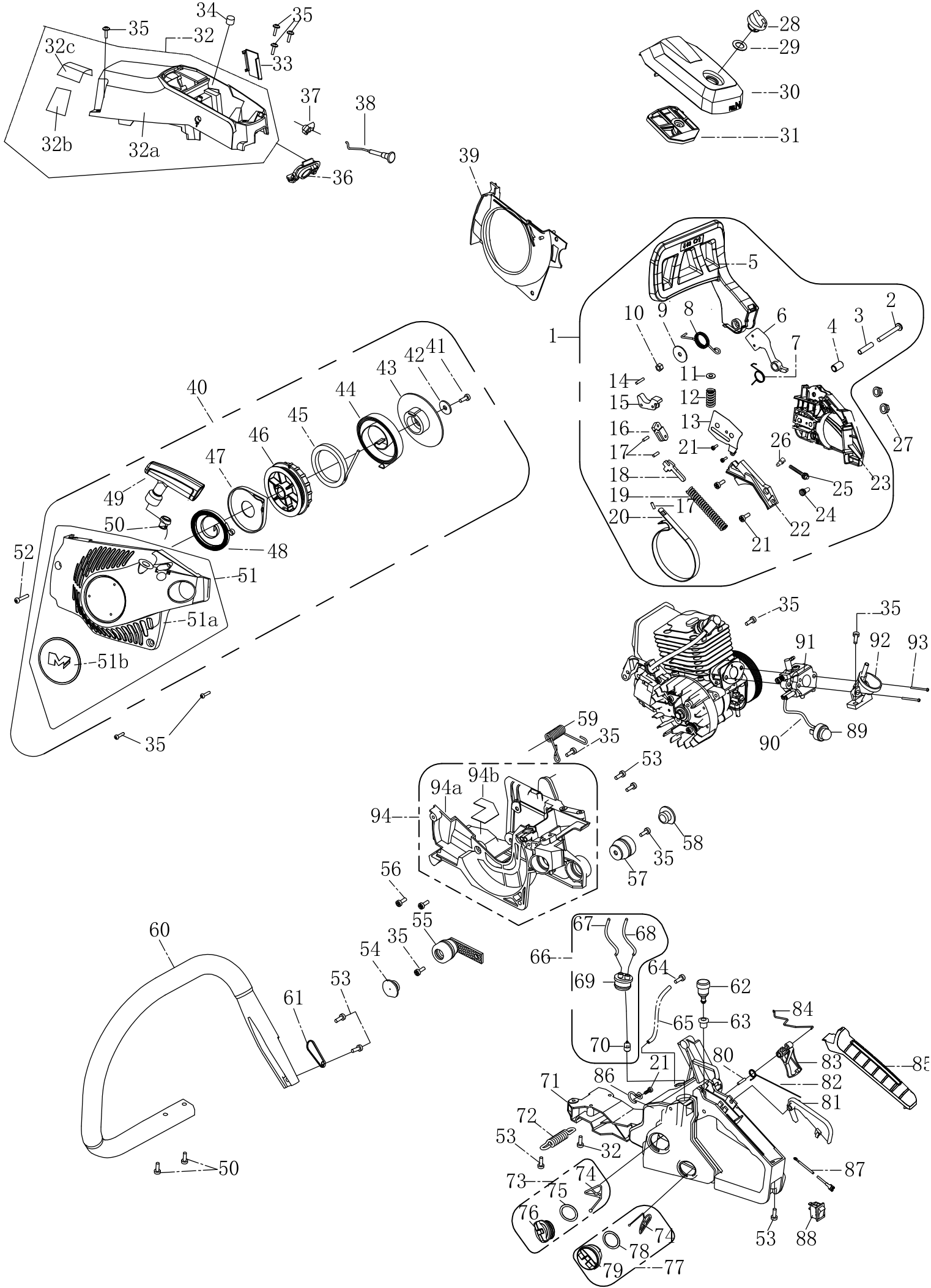

| Drawing 2 | ||||
| 1 | 20087995
CHAIN BRAKE/COVER ASSEMBLY | Not Available | ||
| 2 | 20054591
SCREW M5X40 | Not Available | ||
| 3 | 20054590
SPACER $$$ | Not Available | ||
| 4 | 20054589
SPACER $$$ | Not Available | ||
| 5 | 20081963
FRONT DAMPER | Low Stock | 7.69 | |
| 6 | 20081914
LEVER $$$ | Low Stock | 3.99 | |
| 7 | 20054587
LEVER SPRING $$$ | Low Stock | 3.99 | |
| 8 | 20054588
BRAKE TORSION ROD SPRING | In Stock | 3.99 | |
| 9 | 20056814
WASHER 5.2X23X1.2 | Not Available | ||
| 10 | 20054559
NUT - M5 | Not Available | ||
| 11 | 20054586
SPRING BASE | Low Stock | 3.99 | |
| 12 | 20054585
FRONT GUARD SPRING | Low Stock | 3.99 | |
| 13 | 20055141
TENSIONER COVER PLATE | Low Stock | 5.96 | |
| 14 | 20054569
PIN - 3X14MM | Not Available | ||
| 15 | 20081936
CATCH PLATE | Low Stock | 3.99 | |
| 16 | 20081913
SECONDARY PULL-ROD | Low Stock | 3.99 | |
| 17 | 01.05.0161
PIN - 3X9MM | Not Available | ||
| 18 | 20055140
BREAK CONTROL ROD | Low Stock | 6.14 | |
| 19 | 20054686
BRAKE SPRING | In Stock | 3.99 | |
| 20 | 20055139
BREAK STRAP | Low Stock | 6.76 | |
| 21 | 20054543
SCREW $$$ | Not Available | ||
| 22 | 20081967
BREAK SPRING COVER PLATE | Not Available | ||
| 23 | 20081977
RIGHT COVER | Low Stock | 11.92 | |
| 24 | 20054692
TENSIONER ADJUSTMENT DOWEL | In Stock | 3.99 | |
| 25 | 20054690
TENSIONER ADJUSTMENT SCREW | Low Stock | 3.99 | |
| 26 | 20054691
TENSIONER ADJUSTMENT THREAD | In Stock | 3.99 | |
| 27 | 20054556
NUT - M8 | Low Stock | 0.99 | |
| 28 | 20081947
AIR FILTER RETAINING NUT | Low Stock | 3.99 | |
| 29 | 20055405
RETAINING NUT WASHER | Not Available | ||
| 30 | 20081970
AIR FILTER COVER | Not Available | ||
| 31 | 20056844
AIR FILTER | In Stock | 9.25 | |
| 32 | 20087994
TOP COVER ASSEMBLY | Not Available | ||
| 32-A | 20081964
UPPER COVER PLATE | Not Available | ||
| 32-B | 20055157
UPPER HEAT ISOLATION PLATE | Not Available | ||
| 32-C | 20081044
SIDE HEAT ISOLATION PLATE | Not Available | ||
| 33 | 20056829
ANTI-FREEZE BLOCK | Low Stock | 7.03 | |
| 34 | 20054593
SHOCK BLOCK | Not Available | ||
| 35 | 20054536
SCREW $$$ | Not Available | ||
| 36 | 20056540
DUST SHIELD | Not Available | ||
| 37 | 20056552
THROTTLE LEVER RETAINING BRACKET | Not Available | ||
| 38 | 20081975
THROTTLE ROD | Low Stock | 5.42 | |
| 39 | 20081969
SHROUD | Not Available | ||
| 40 | 20086517
PULL-START ASSEMBLY | Not Available | ||
| 41 | 20054547
SCREW $$$ | Low Stock | 3.99 | |
| 42 | 20054562
WASHER $$$ | Not Available | ||
| 43 | 20056883
START PLATE $$$ | Low Stock | 3.99 | |
| 44 | 20055150
START COIL SPRING $$$ | Low Stock | 3.99 | |
| 45 | 20056633
STARTER ROPE 3X920 | In Stock | 9.99 | |
| 46 | 20056883
START PLATE $$$ | Low Stock | 3.99 | |
| 47 | 20056497
STARTER SPRING $$$ | In Stock | 3.99 | |
| 48 | 20056498
STARTER ASSEMBLY - CLOCK SPRING (included w GP0000007290) | In Stock | 3.99 | |
| 50 | 20054579
EYELET | Low Stock | 5.02 | |
| 51 | 20091261
PULL-START COVER | Not Available | ||
| 51-A | 20081976
STARTER COVER | Not Available | ||
| 51-B | 20081941
TITAN LOGO $$$ | Not Available | ||
| 53 | 20060961
TAPPING SCREW ST5X25 | Not Available | ||
| 54 | 20081962
LEFT DUST COVER | Not Available | ||
| 55 | 20056618
CUSHION SOCKET 1 | Not Available | ||
| 56 | 20060972
SCREW M5X14 | Not Available | ||
| 57 | 20056614
CUSHION SOCKET 2 | Not Available | ||
| 58 | 20081956
RIGHT DUST COVER | Not Available | ||
| 59 | 20050100
FRONT HANDLE SPRING | Low Stock | 5.73 | |
| 60 | 20051850
FRONT HANDLE | Low Stock | 15.04 | |
| 61 | 20055112
TORSION ROD SPRING COVER PLATE | Not Available | ||
| 62 | 20054685
FUEL TANK BREATHER VALVE | Low Stock | 3.99 | |
| 63 | 20054580
SEAL | Low Stock | 3.99 | |
| 64 | 20055736
TAPPING SCREW ST4.2X14 | Not Available | ||
| 65 | 20056645
VENT TUBE 3.5X6.5X72 | Not Available | ||
| 66 | 20088076
FUEL LINE KIT (TTCSP40xx/MCSWP40xx) | Not Available | ||
| 67 | B23.0111.0002
FUEL PIPE 2.5X5X230 | Not Available | ||
| 68 | B23.0111.0002
FUEL PIPE 2.5X5X230 | Not Available | ||
| 69 | 20056638
TUBE ROOT | Not Available | ||
| 71 | 20081957
BASE | Not Available | ||
| 72 | 20055110
BASE SPRING | Not Available | ||
| 73 | 20085769
MOTOR | Not Available | ||
| 74 | 20054582
CAP RETAINER $$$ | Not Available | ||
| 75 | 20056768
O-RING $$$ | Not Available | ||
| 76 | 20081974
PETROL COVER | Low Stock | 3.99 | |
| 77 | 20087978
OIL FILLER CAP ASSEMBLY | Not Available | ||
| 78 | 20055286
O-RING $$$ | Not Available | ||
| 79 | 20081940
FUEL/OIL TANK CAP $$$ | Not Available | ||
| 80 | 20061567
PIN 5X24 | Not Available | ||
| 81 | 20081971
TRIGGER CONTROL RACK | Not Available | ||
| 82 | 20054680
TRIGGER TORSION ROD SPRING | In Stock | 3.99 | |
| 83 | 20081973
TRIGGER | Low Stock | 5.47 | |
| 84 | 20055111
THROTTLE ROD | Low Stock | 6.14 | |
| 85 | 20081961
HANDLE COVER | Low Stock | 6.14 | |
| 86 | 20055135
CIRCLIP FOR NOZZLE | Low Stock | 5.20 | |
| 88 | 02.05.86
SWITCH | In Stock | 4.99 | |
| 89 | A38.0311.0100
PRIMER BULB | In Stock | 4.99 | |
| 90 | B23.0111.0002
FUEL PIPE 2.5X5X230 | Not Available | ||
| 91-RUIXING | 20092905
CARBURETTOR - RUIXING (MC16H4) | Not Available | ||
| 91-WALBRO | 20054939
CARBURETTOR - WALBRO | Low Stock | 34.99 | |
| 92 | 20056596
AIR INTAKE SOCKET | Low Stock | 5.78 | |
| 93 | 20055129
CARBURETTOR SCREW | Low Stock | 5.33 | |
| 94 | 20088077
ENGINE BASE ASSEMBLY | Not Available | ||
| 94-A | 20081953
CASE | Low Stock | 11.03 | |
| 94-B | 20055133
ENGINE BASE HEAT ISOLATION PLATE | Not Available | ||
| 95 | 30001148
CHAIN COVER | Low Stock | 8.36 | |
| 96 | 91P057X
ACCESSORY - CHAIN - OREGON 91P057X | Low Stock | 19.99 | |
| 97 | 160SDEA041
ACCESSORY - GUIDE BAR - OREGON 160SDEA041 | Low Stock | 29.99 | |
| Manufacturer Model Number | TTCSP40-1 |
| EAN | 5059340255880 |
| Brand | Titan |
| Description | 40.1CC 40CM CHAINSAW |
