Titan TTG1232PRW PRESSURE WASHER - 12V

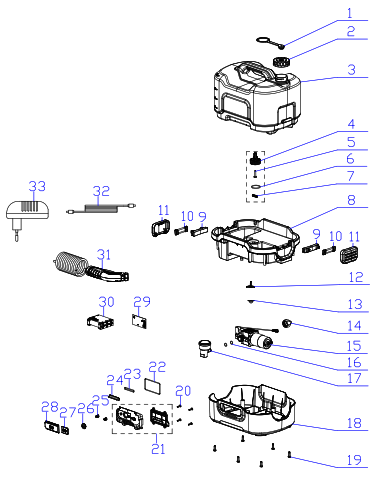

Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1 | 1600001334
CAP RETAINER | Not Available | ||
| 2 | 1200027257
TANK FILL CAP | Not Available | ||
| 3 | 1200027255
TANK | Not Available | ||
| 4 | 1600001330
CHECK-VALVE COVER | Not Available | ||
| 5 | 1200027268
CHECK-VALVE CORE | Not Available | ||
| 6 | 1600001333
CHECK-VALVE O-RING | Not Available | ||
| 7 | 1300031262
CHECK-VALVE SPRING | Not Available | ||
| 8 | 1200027259
UPPER HOUSING | Not Available | ||
| 9 | 1200027260
CLIP BRACKET | Not Available | ||
| 10 | 1200027261
CLIP LINK | Not Available | ||
| 11 | 1200027258
TANK CLIP | Not Available | ||
| 12 | 1200027267
PUSH ROD | Not Available | ||
| 13 | 1600001342
INLET SEAL | Not Available | ||
| 14 | 1100050357
OUTLET ADAPTER | Not Available | ||
| 15 | 1500022592
DIAPHRAGM PUMP | Not Available | ||
| 16 | 1600000466
O-RING - 7.1X1.8 | Not Available | ||
| 17 | 1200027263
INLET CONNECTOR | Not Available | ||
| 18 | 1200027262
LOWER HOUSING | Not Available | ||
| 21 | 1100050356
CONTROL PANEL ASSEMBLY | Not Available | ||
| 22 | 1600001336
CONTROL PANEL SEAL | Not Available | ||
| 23 | 1600001331
LIGHT DIFFUSER SEAL | Not Available | ||
| 24 | 1200027269
LIGHT DIFFUSER | Not Available | ||
| 25 | 1300031261
SPRING | Not Available | ||
| 26 | 1600001337
PLUG | Not Available | ||
| 27 | 1600001335
USB COVER | Not Available | ||
| 28 | 1200027264
SWITCH PLATE | Not Available | ||
| 29 | 1500022583
CONTROL PCB | Not Available | ||
| 30 | 1500022584
BATTERY ASSEMBLY | Not Available | ||
| 31 | 1100050425
ACCESSORY - SPRAY GUN | Not Available | ||
| 32 | 1500026234
USB C CABLE | Not Available | ||
| 33 | 1500026233
USB MAINS ADAPTER - EH0500-1000WuE | Not Available | ||
| Manufacturer Model Number | TTG1232PRW |
| EAN | 5063022665751 |
| Brand | Titan |
| Description | PRESSURE WASHER - 12V |
