Titan TTL758CHN 2000W 40CM SIDE CHAINSAW

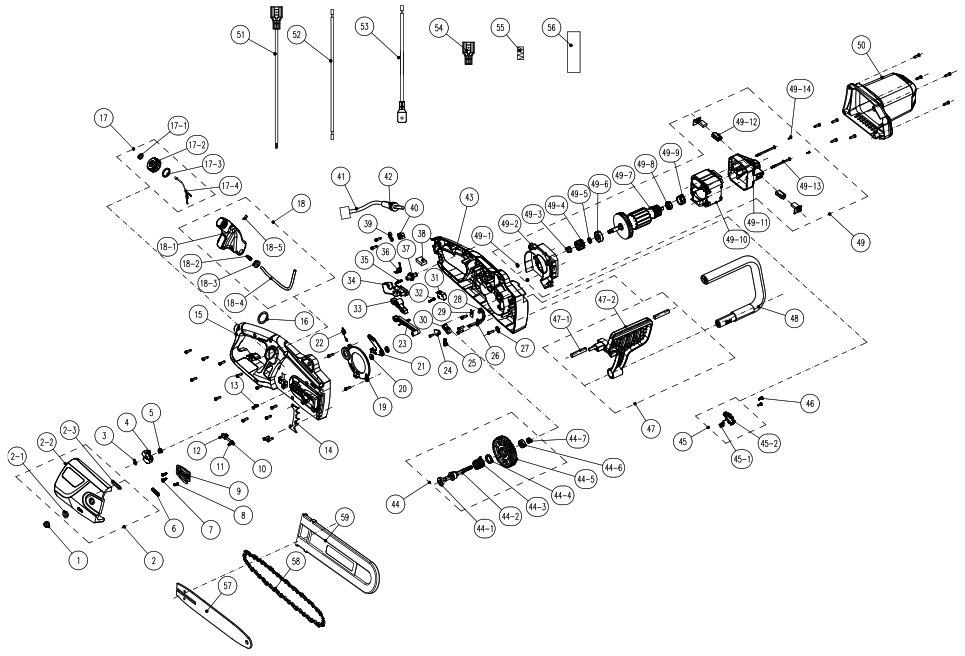

Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1 | 8NG-08
HEXAGON NUTS WITH FLANGE | In Stock | 1.99 | |
| 2 | 8440-439509
THE END CAP ASSEMBLY | In Stock | 4.99 | |
| 2-1 | 8334-463101
SPINDLE COVER | Not Available | ||
| 2-2 | 8021-439502
THE END CAP | Not Available | ||
| 2-3 | 8208-438801
SEAL RING | Not Available | ||
| 3 | 8CE-07
SPLIT WASHER | Not Available | ||
| 4 | 8128-462202
CHAIN WHEEL | In Stock | 4.99 | |
| 5 | 8342-462304
TENSIONING SPRING | Low Stock | 3.99 | |
| 6 | 8208-438301
SEAL RING | Not Available | ||
| 7 | 8SNAB29-12D
PHILIPS PANHEAD SCREW | Not Available | ||
| 8 | 8SJAB40-16D
SELF TAPPING SCREWS | Not Available | ||
| 9 | 8202-438801
HEAT INSULATION WASHER | Not Available | ||
| 10 | 8206-433201-01
ADJUSTING SCREW ROD | On Order | 1.99 | |
| 11 | 8WF-05D
FLAT WASHER | Not Available | ||
| 12 | 8207-491301
TIGHTENING NUT | Not Available | ||
| 13 | 8SJAB40-30D
SELF TAPPING SCREWS | Not Available | ||
| 14 | 8181-481601
DEAD BLOCK | Not Available | ||
| 15 | 8006-439502
RIGHT HOUSING | Low Stock | 14.99 | |
| 16 | 8341-491801
RUBBER BLANKET | Not Available | ||
| 17 | 8440-438408
OIL BOX CAP ASSY | Low Stock | 4.99 | |
| 17-1 | 8024-432101
COVER THE CAP | Not Available | ||
| 17-2 | 8020-431701
OIL BOX CAP | Not Available | ||
| 17-3 | 8208-431901
SEAL RING | Not Available | ||
| 17-4 | 8088-438401
HANGER | Not Available | ||
| 18 | 8440-439502
OIL BOX ASSY' | Low Stock | 9.99 | |
| 18-1 | 8165-439501
OIL BOX | Low Stock | 9.99 | |
| 18-2 | 8342-437501
FILTER THE SPRING | Not Available | ||
| 18-3 | 8208-462503
OIL BOX SEAL RING | Low Stock | 9.99 | |
| 18-4 | 234-1003
TRANSPARENT OIL TUBE | On Order | Contact Us | |
| 18-5 | 8335-481201
VALVE | Not Available | ||
| 19 | 8342-438401
DUST SHIELD | Low Stock | 3.99 | |
| 20 | 8334-439501
SPINDLE COVER | Not Available | ||
| 21 | 8321-439501
BRAKE PAD | Not Available | ||
| 22 | 8342-435302
BRAKE RETRACTING SPRING | Not Available | ||
| 23 | 8087-438401-01
LINK SWITCH | Low Stock | 3.99 | |
| 24 | 8182-471902
CLAMP | Not Available | ||
| 25 | 8342-481501
BRAKE LEVER SPRING | In Stock | 1.99 | |
| 26 | 8440-467608
NOZZLE COMPONENTS | Not Available | ||
| 27 | 8202-462203
BRAKE LINING | In Stock | 4.99 | |
| 28 | 234-1003
TRANSPARENT OIL TUBE | On Order | Contact Us | |
| 29 | 8182-439501
CLAMP | Not Available | ||
| 30 | 8304-438401
PROTECTION PLATE LOCATION BLOCK | Not Available | ||
| 31 | 8042-481601
MICROSWITCH | Low Stock | 3.99 | |
| 32 | 8SJAB30-16D
SELF TAPPING SCREWS | Not Available | ||
| 33 | 8087-438402
INTERMEDIATE CONNECTING ROD | Not Available | ||
| 34 | 8312-439401
SWITCH BUTTON | Not Available | ||
| 35 | 8342-432101
SWITCH TORSIONAL SPRING | Not Available | ||
| 36 | 8342-463002
PUSH THE BUTTON ON THE SPRING | Low Stock | 3.99 | |
| 37 | 8312-433501
LOCK OFF BUTTON | In Stock | 3.99 | |
| 38 | 8416-000006
TWO FEET CAPACITANCE | Not Available | ||
| 39 | 8184-282102
CABLE BOARD | Low Stock | 4.99 | |
| 40 | 8411-522201
TERMINAL STRIP | Not Available | ||
| 41 | 8422-431701-01
POWER CORD | Low Stock | Contact Us | |
| 42 | 8332-491901
CABLE SHEATH | Not Available | ||
| 43 | 8006-439501
LEFT HOUSING | Not Available | ||
| 44 | 8440-439502
OUTPUT SHAFT ASSY' | Low Stock | 9.99 | |
| 44-1 | 8BC-221006-ST
6900 BEARING | Not Available | ||
| 44-2 | 8085-434501
OUTPUT SHAFT | Not Available | ||
| 44-3 | 8342-435301
TORSIONAL SPRING | Not Available | ||
| 44-4 | 8063-462201
SPINDLE COVER | Not Available | ||
| 44-5 | 8123-471301
OUTPUT SHAFT GEAR | Not Available | ||
| 44-6 | 8BC-220807-ST03
608Z BEARING | Not Available | ||
| 44-7 | 8NH-08D
HEXAGON LOCK NUT | In Stock | 0.95 | |
| 45 | 8440-435325
OIL PUMPASSEMBLY | Not Available | ||
| 45-1 | 8342-491201
OIL PUMP TENSION SPRING | Not Available | ||
| 45-2 | 8440-481614
OIL PUMP ASSEMBLY | Not Available | ||
| 46 | 8SNAB29-12D
PHILIPS PANHEAD SCREW | Not Available | ||
| 47 | 8440-439503
PROTECTIVE PLATE ASSEMBLY | Not Available | ||
| 47-1 | 8302-439501
CLUMP WEIGHT | Not Available | ||
| 47-2 | 8185-439501
PROTECTIVE PLATE | Not Available | ||
| 48 | 8003-439501
FRONT HANDLE | Not Available | ||
| 49 | 8440-439505
MOTOR ASSEMBLY | Low Stock | 34.99 | |
| 49-1 | 8NH-04D
TYPE 1 NON - METAL INSERT HEXAGON LOCK NUT | Not Available | ||
| 49-2 | 8182-438401
WIND SCREEN | Not Available | ||
| 49-3 | 8NG-08D
HEXAGON NUTS WITH FLANGE | Not Available | ||
| 49-4 | 8123-439501
MOTOR GEAR | Not Available | ||
| 49-5 | 8333-462203
MOTOR GEAR BUSHING | Not Available | ||
| 49-6 | 8BC-301009-SS20
BEASRING | Not Available | ||
| 49-7 | 8402-481603
THE ROTOR ASSEMBLY | On Order | Contact Us | |
| 49-8 | 8BC-220807-ST
608Z BEARING | Not Available | ||
| 49-9 | 8333-211001
BEARING SLEEVE | Not Available | ||
| 49-10 | 8405-481080
STATOR | Not Available | ||
| 49-11 | 8291-438402
MOTOR BACK SUPPORT | Not Available | ||
| 49-12 | 8440-439607
BRUSH HOLDER ASSEMBLY | Not Available | ||
| 49-13 | 8206-481003
THE STATOR SCREW | Not Available | ||
| 49-14 | 8SJGB30-08D
COMPOUND SLOTTED SCREW | Not Available | ||
| 50 | 8004-439501
MOTOR REAR COVER | Not Available | ||
| 51 | 8413-433401
CONNECTING WIRE | Not Available | ||
| 52 | 8413-690902
CONNECTING WIRE | Not Available | ||
| 53 | 8413-467402
CONNECTING WIRE | Not Available | ||
| 54 | 239-0011
THE FEMALE TERMINAL | Not Available | ||
| 55 | 239-0044
COPPER STRIP | Not Available | ||
| 56 | 233-1006
HEAT SHRINKABLE TUBE | Not Available | ||
| 57 | 243-0062
GUIDE BAR | Not Available | ||
| 58 | 243-0057
CHAIN SAW | Not Available | ||
| 59 | 8331-462101
GUIDE BAR SLEEVE | Not Available | ||
| Manufacturer Model Number | TTL758CHN |
| EAN | 3663602627913 |
| Brand | Titan |
| Description | 2000W 40CM SIDE CHAINSAW |
