Titan TTL758CHN-A 2000W 40CM SIDE CHAINSAW (GREY/BLACK/ORANGE)

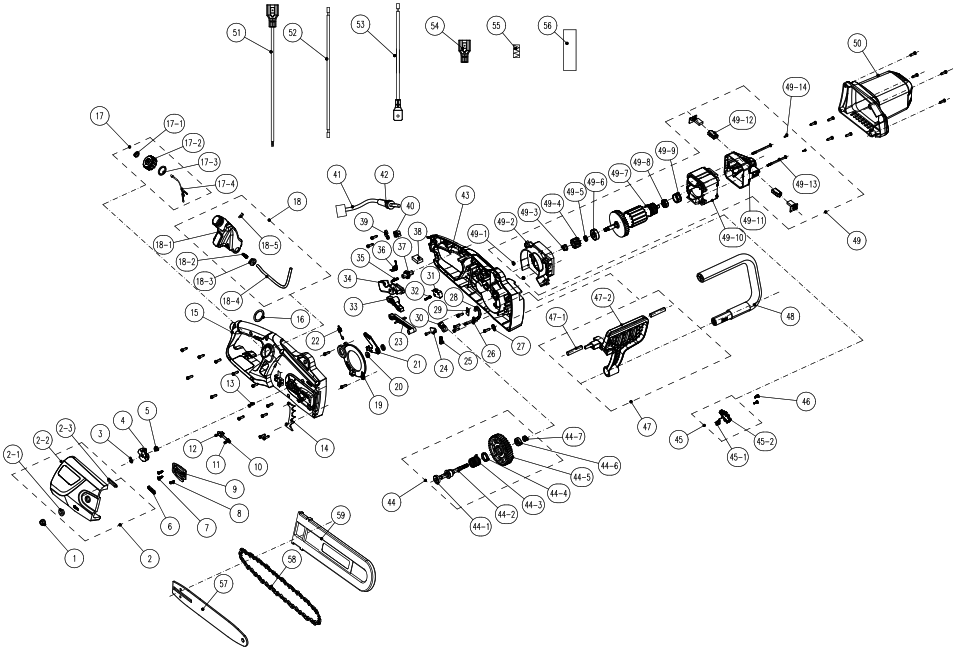

Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| PWR LD | 207021600012
ACCESSORY - 3M POWER CORD EXTENSION | Not Available | ||
| 1 | 8NG-08D
HEXAGON NUTS WITH FLANGE | In Stock | 1.99 | |
| 2 | 199001000655
THE END CAP ASSEMBLY | In Stock | 4.99 | |
| 2-1 | 8334-463101-0000000
SPROCKET COVER - SHAFT SLEEVE | Not Available | ||
| 2-2 | 202011000694
THE END CAP | Not Available | ||
| 2-3 | 8208-438801-0000120
SPROCKET COVER - SEALING RING | Not Available | ||
| 3 | 8CE-07B
SPLIT WASHER | In Stock | 0.95 | |
| 4 | 201035000009
SPROCKET | In Stock | 3.99 | |
| 5 | 8342-462304-0000000
SPROCKET TENSION SPRING (WAS 8342-462304) | Not Available | ||
| 6 | 8208-438301-0000020
SEAL RING | Low Stock | 0.50 | |
| 7 | 8SNAB29-12D
PHILIPS PANHEAD SCREW $$$ | Not Available | ||
| 8 | 8SJAB30-16D
SELF TAPPING SCREWS $$$ | Not Available | ||
| 9 | 8202-438801-0000000
TENSIONER GASKET | Low Stock | 3.99 | |
| 10 | 207229900343
UPGRADED TENSIONER SCREW (WAS 820643320101/GP-1922) | On Order | 4.50 | |
| 11 | 8WF-05D
FLAT WASHER | Not Available | ||
| 12 | 8207-491301-0000001
TIGHTENING NUT | Low Stock | 0.95 | |
| 13 | 8SJAB40-30D
SELF TAPPING SCREWS | Not Available | ||
| 14 | 8181-481601-0000000
DEAD BLOCK | Not Available | ||
| 15 | 202016005581
RIGHT HOUSING | Low Stock | 14.99 | |
| 16 | 8341-491801-0000120
RUBBER MAT | Not Available | ||
| 17 | 199123000534
OIL BOX CAP ASSY | Low Stock | 4.99 | |
| 17-1 | 8024-432101-0100120
OIL TANK CAP COVER (USE ASSEMBLY) | Not Available | ||
| 17-2 | 8020-431701-0000120
OIL TANK CAP (USE ASSEMBLY) | Not Available | ||
| 17-3 | 8208-431901-0000110
OIL TANK CAP SEAL RING | Not Available | ||
| 17-4 | 8088-438401-0001710
HANGER | Not Available | ||
| 18 | 199124000156
OIL TANK ASSEMBLY | Not Available | ||
| 18-1 | 202164000107
OIL TANK BODY (USE ASSEMBLY) | Not Available | ||
| 18-2 | 207010200001
CONICAL COMPRESSION SPRING (GP0000002272) | Not Available | ||
| 18-3 | 8208-462503-0000120
OIL BOX SEAL RING | Low Stock | 9.99 | |
| 18-4 | 234-1003
TRANSPARENT OIL TUBE | Low Stock | 3.99 | |
| 18-5 | 202074000005
VALVE | Not Available | ||
| 19 | 202079000045
DUST SHIELD | Low Stock | 3.99 | |
| 20 | 207280100004
SHAFT SLEEVE (WAS 8334-439501) | Not Available | ||
| 21 | 201028000007
BRAKE BLOCK (WAS 8321-439501) | Low Stock | 9.99 | |
| 22 | 8342-435302-0000000
BRAKE RETRACTING SPRING | Low Stock | 4.99 | |
| 23 | 8087-438401-0101710
LINK SWITCH | Low Stock | 3.99 | |
| 24 | 8182-471902-0000000
CLAMP | Not Available | ||
| 25 | 8342-481501-0000000
BRAKE LEVER SPRING | In Stock | 1.99 | |
| 26 | 8440-467608-0000010
NOZZLE COMPONENTS | Not Available | ||
| 27 | 8202-462203-0000001
BRAKE LINING | In Stock | 4.99 | |
| 28 | 234-1003
TRANSPARENT OIL TUBE | Low Stock | 3.99 | |
| 29 | 201057000187
CLAMP | Not Available | ||
| 30 | 8304-438401-0001710
PROTECTION PLATE LOCATION BLOCK | Not Available | ||
| 31 | 8042-481601
MICROSWITCH | Low Stock | 3.99 | |
| 33 | 8087-438402-0001710
INTERMEDIATE CONNECTING ROD | Not Available | ||
| 34 | 202003002271
SWITCH BUTTON | Not Available | ||
| 35 | 8342-432101-0000000
SWITCH TORSION SPRING | Not Available | ||
| 36 | 8342-463002-0000000
BUTTON | Low Stock | 3.99 | |
| 37 | 202003002272
LOCK OFF BUTTON | In Stock | 3.99 | |
| 38 | 8416-000006-0000020
TWO FEET CAPACITANCE | Not Available | ||
| 39 | 8184-282102-0001710
CABLE CLAMP | Low Stock | 4.99 | |
| 40 | 8411-522201-0000012
TERMINAL STRIP | Not Available | ||
| 41 | 8422-430205-0000020
POWER CABLE (0.35M) | Not Available | ||
| 42 | 207090100004
CABLE SHEATH (WAS 8332-491901-0100120) | Not Available | ||
| 43 | 202016005575
LEFT HOUSING | Low Stock | 14.99 | |
| 44 | 199101000099
OUTPUT SHAFT ASSY' | In Stock | 9.99 | |
| 44-1 | 8BC-221006-ST03
BEARING 6900 | Not Available | ||
| 44-2 | 201025000273
OUTPUT SHAFT | Not Available | ||
| 44-3 | 8342-435301-0000000
TORSIONAL SPRING | Not Available | ||
| 44-4 | 8063-462201-0100000
SPINDLE COVER | Not Available | ||
| 44-5 | 8123-471301-0001710
OUTPUT SHAFT GEAR | Low Stock | 2.95 | |
| 44-6 | 8BC-220807-ST03
608Z BEARING | Not Available | ||
| 44-7 | 8NH-08D
SIX ANGLE LOCK NUT $$$ | In Stock | 0.95 | |
| 45 | 199010000159
OIL PUMP ASSEMBLY | Not Available | ||
| 45-1 | 8342-491201-0100000
OIL PUMP TENSION SPRING | Not Available | ||
| 45-2 | 8440-481614-0000000
OIL PUMP | Not Available | ||
| 46 | 8SNAB29-12D
PHILIPS PANHEAD SCREW $$$ | Not Available | ||
| 47 | 8440-439503
PROTECTIVE PLATE ASSEMBLY | Not Available | ||
| 47-1 | 201031000014
CLUMP WEIGHT | Not Available | ||
| 47-2 | 202012000636
PROTECTIVE PLATE | Not Available | ||
| 48 | 201054000030
FRONT HANDLE | Not Available | ||
| 49 | 101001000673
MOTOR ASSEMBLY | On Order | 60.99 | |
| 49-1 | 8NH-04D
SIX ANGLE LOCK NUT $$$ | Not Available | ||
| 49-2 | 8182-438401-0001710
WIND SCREEN $$$ USE 8440-439505 | Not Available | ||
| 49-3 | 8NG-08D
HEXAGON NUTS WITH FLANGE | In Stock | 1.99 | |
| 49-4 | 8123-439501
MOTOR GEAR $$$ USE 8440-439505 | Not Available | ||
| 49-5 | 8333-462203-0000000
MOTOR GEAR BUSHING $$$ USE 8440-439505 | Not Available | ||
| 49-6 | 8BC-301009-SS20
BEARING $$$ (USE 8440-439505) | Not Available | ||
| 49-8 | 8BC-220807-ST
608Z BEARING | Not Available | ||
| 49-9 | 8333-211001-0000120
BEARING SLEEVE | Not Available | ||
| 49-10 | 8405-481080
STATOR $$$ USE 8440-439505 | Not Available | ||
| 49-11 | 8291-438402-0001710
MOTOR BACK SUPPORT $$$ USE 8440-439505 | Not Available | ||
| 49-12 | 199102000007
BRUSH HOLDER ASSEMBLY | Not Available | ||
| 49-13 | 8206-481003-0000000
STATOR SCREW $$$ USE 8440-439505 | Not Available | ||
| 49-14 | 8SJGB30-08D
SELF-TAPPING SCREW | Not Available | ||
| 50 | 202030002382
MOTOR REAR COVER | Low Stock | 3.99 | |
| 51 | 8413-433401-0000020
CONNECTING WIRE | Not Available | ||
| 52 | 207031300011
CONNECTING WIRE | Not Available | ||
| 53 | 8413-467402-0000010
CONNECTING WIRE | Not Available | ||
| 54 | 239-0011
THE FEMALE TERMINAL | Not Available | ||
| 55 | 239-0044
COPPER STRIP | Not Available | ||
| 56 | 233-1006
HEAT SHRINKABLE TUBE | Not Available | ||
| 57 | 160SDEA041
ACCESSORY - GUIDE BAR - OREGON 160SDEA041 | Low Stock | 29.99 | |
| 58 | 91PJ056X
ACCESSORY - CHAIN - OREGON 91PJ056X | Not Available | ||
| 59 | 8331-462101-0000120
GUIDE BAR SLEEVE | In Stock | 4.99 | |
| Manufacturer Model Number | TTL758CHN-A |
| EAN | 5059340880709 |
| Brand | Titan |
| Description | 2000W 40CM SIDE CHAINSAW (GREY/BLACK/ORANGE) |
