Cooke and Lewis CL60CGRF 60CM CURVED GLASS COOKER HOOD WITH RF

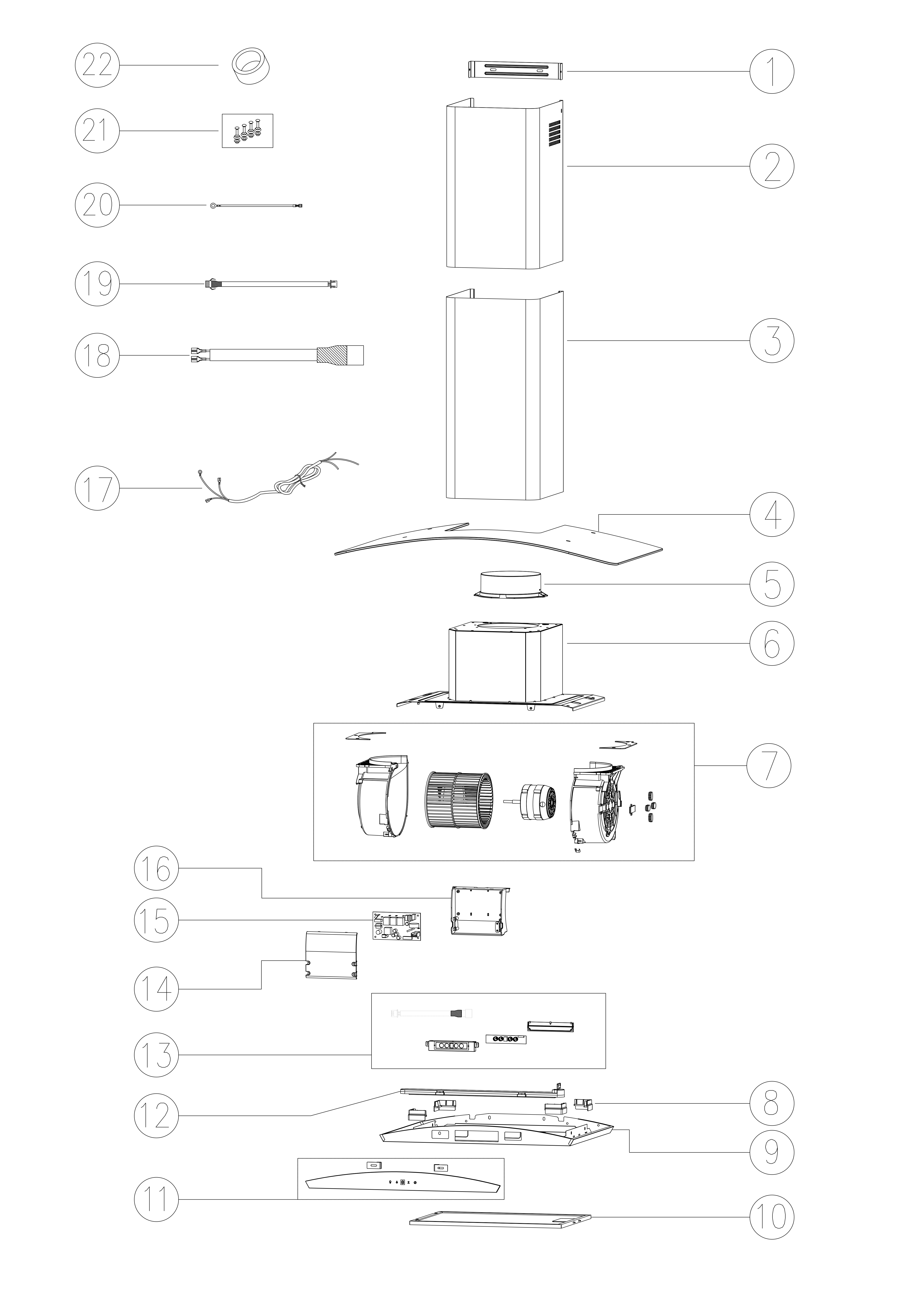

Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1 | 1.01.04.02.0023
BRACKET OF S/S TUBE (WAS K1.01.15-CG60DC030-00) | In Stock | 4.99 | |
| 2 | 1.01.04.08.0003
UPPER S/S TUBE (WAS AA0000000635) | In Stock | 19.99 | |
| 3 | 2.03.04.01.0016
UNDER FLUE PIPE | In Stock | 22.49 | |
| 4 | 1.03.04.02.0016
HOT BENT TEMPERED GLASS (WAS PART NUMBER AA0000000637) | In Stock | 34.99 | |
| 5 | 1.02.04.10.0008
OUTLET (WAS K1.05.14-CG60DC090-00) | Not Available | ||
| 6 | 1.01.04.10.0012
WIND CHAMPER CASE (WAS K1.01.15-CG60DC040-00) | Low Stock | 22.49 | |
| 7 | 1.04.04.06.0010
T1DC MOTOR GROUP (CAN USE K5.78-T1DC00000-00 OR 2.02.04.04.0016) | Low Stock | 57.99 | |
| 8 | 1.02.04.10.0029
FLITER PLASTIC STOPER (WAS K1.05.14-CG60DC080-00) | In Stock | 6.99 | |
| 9 | 1.01.04.10.0019
INNER CASING (WAS K1.01.15-CG60DC060-00) | Not Available | ||
| 10 | 1.06.04.01.0001
FILTER $$$ (CAN USE 10604010044) | Not Available | ||
| 11 | 2.02.04.10.0034
GLASS PANEL AND SWITCH BRACKET | Not Available | ||
| 12 | 1.04.04.07.0004
SS LED (WARM) | Low Stock | 17.99 | |
| 13 | 2.02.04.07.0001
TACTILE SWITCH ASSEMBLY (KFU)CH | Low Stock | 24.99 | |
| 14 | 1.02.04.10.0015
POWER PCB COVER | In Stock | 4.99 | |
| 15 | 1.05.04.01.0003
POWER PCBA | In Stock | 44.99 | |
| 16 | 1.02.04.10.0012
POWER PCB CASING | In Stock | 8.99 | |
| 17 | 1.04.04.01.0001
POWER CORD | In Stock | 9.99 | |
| 18 | 1.04.04.02.0006
WIRING HARNESS - LIGHTING | In Stock | 4.99 | |
| 19 | 1.04.04.08.0003
SWITCH WIRE | In Stock | 3.50 | |
| 20 | 1.04.04.02.0007
THE EARTH WIRE OF POWER BOARD | On Order | Contact Us | |
| 21 | 2.02.04.10.0039
SCREW PACKAGE ASSEMBLY | In Stock | 9.99 | |
| 22 | 1.04.01.09.0001
MAGNETIC RING (WAS AA0000001197) | In Stock | 4.99 | |
| Manufacturer Model Number | CL60CGRF |
| EAN | 3663602553052 |
| Brand | Cooke and Lewis |
| Description | 60CM CURVED GLASS COOKER HOOD WITH RF |
